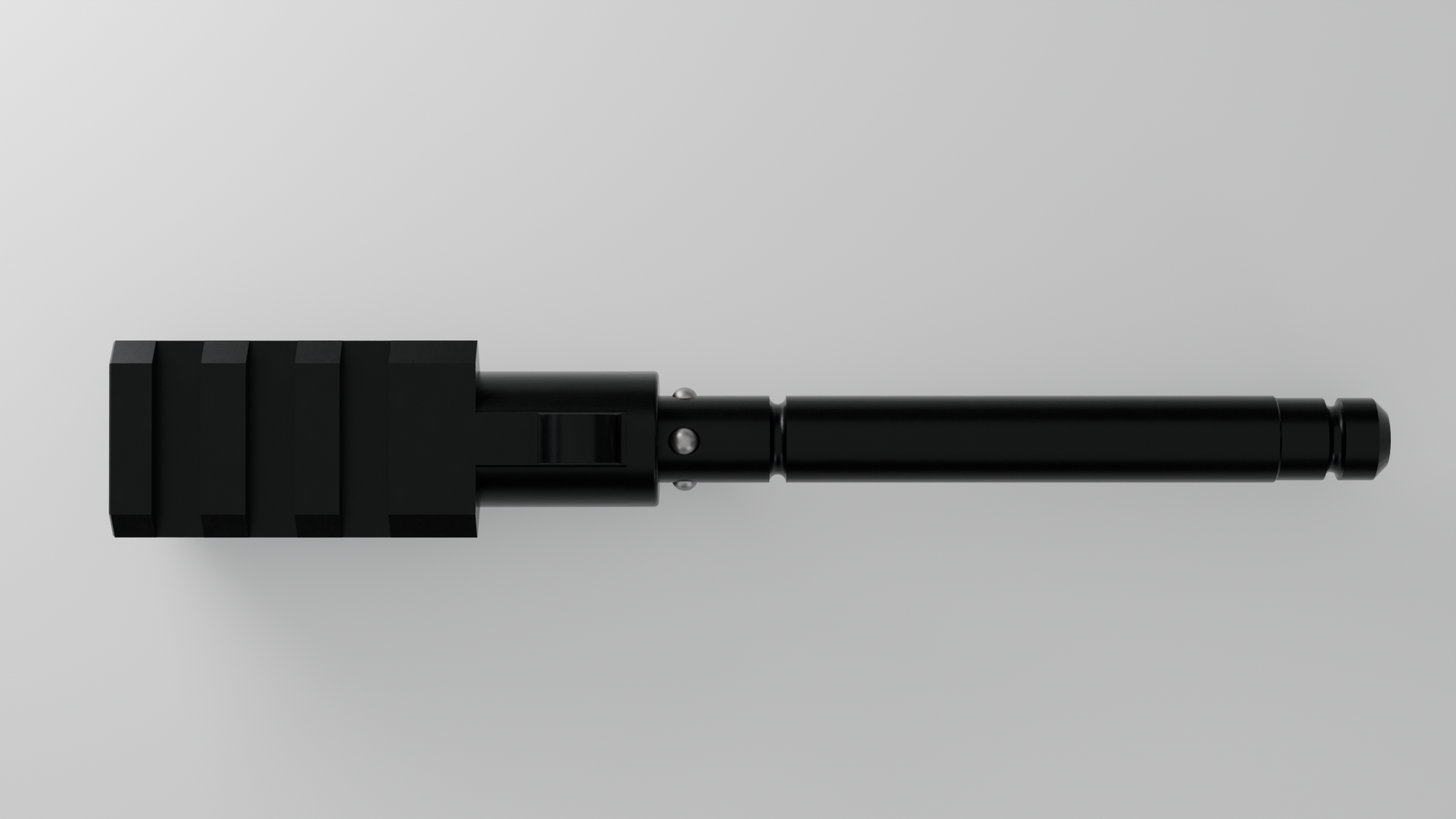

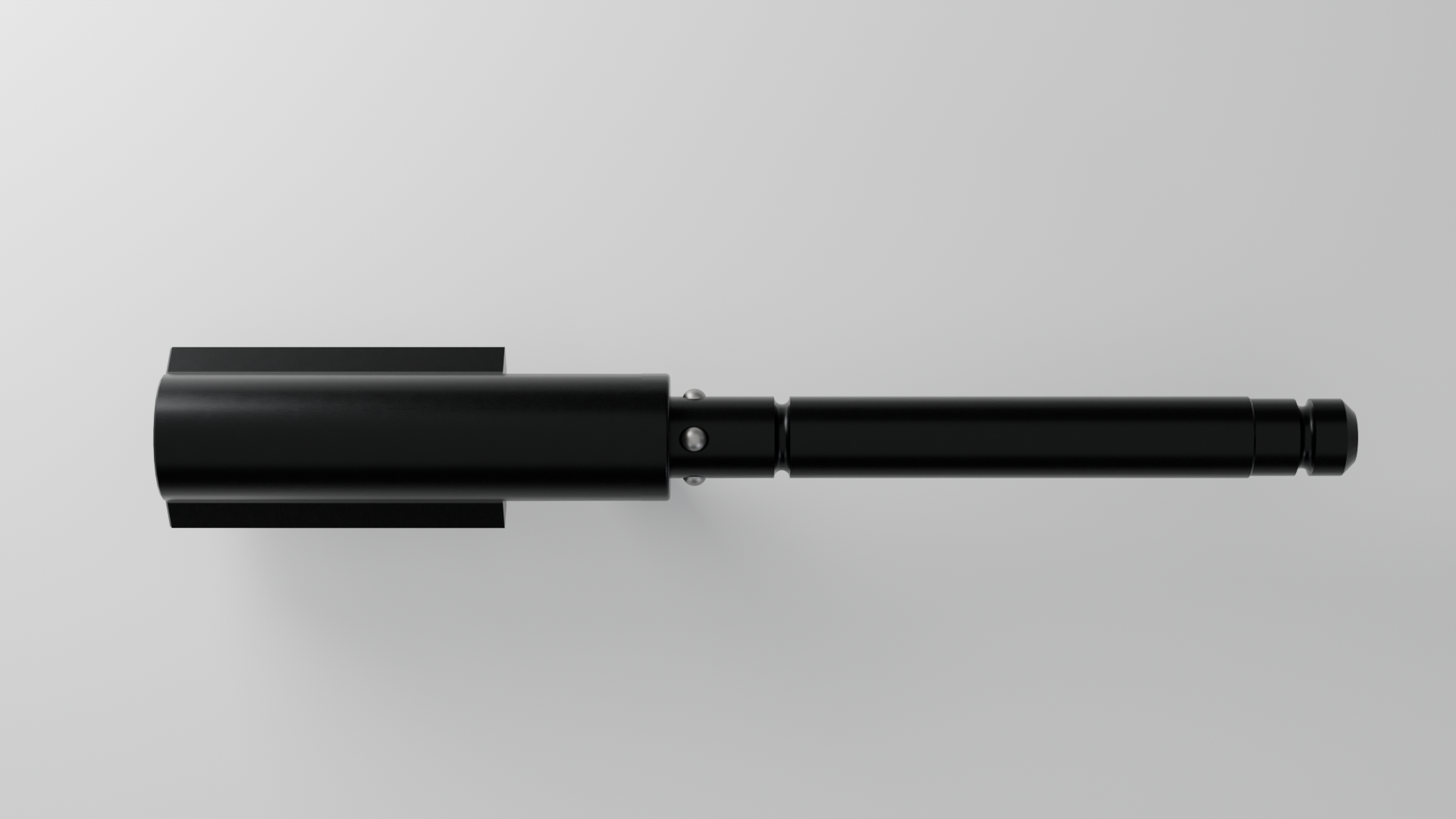

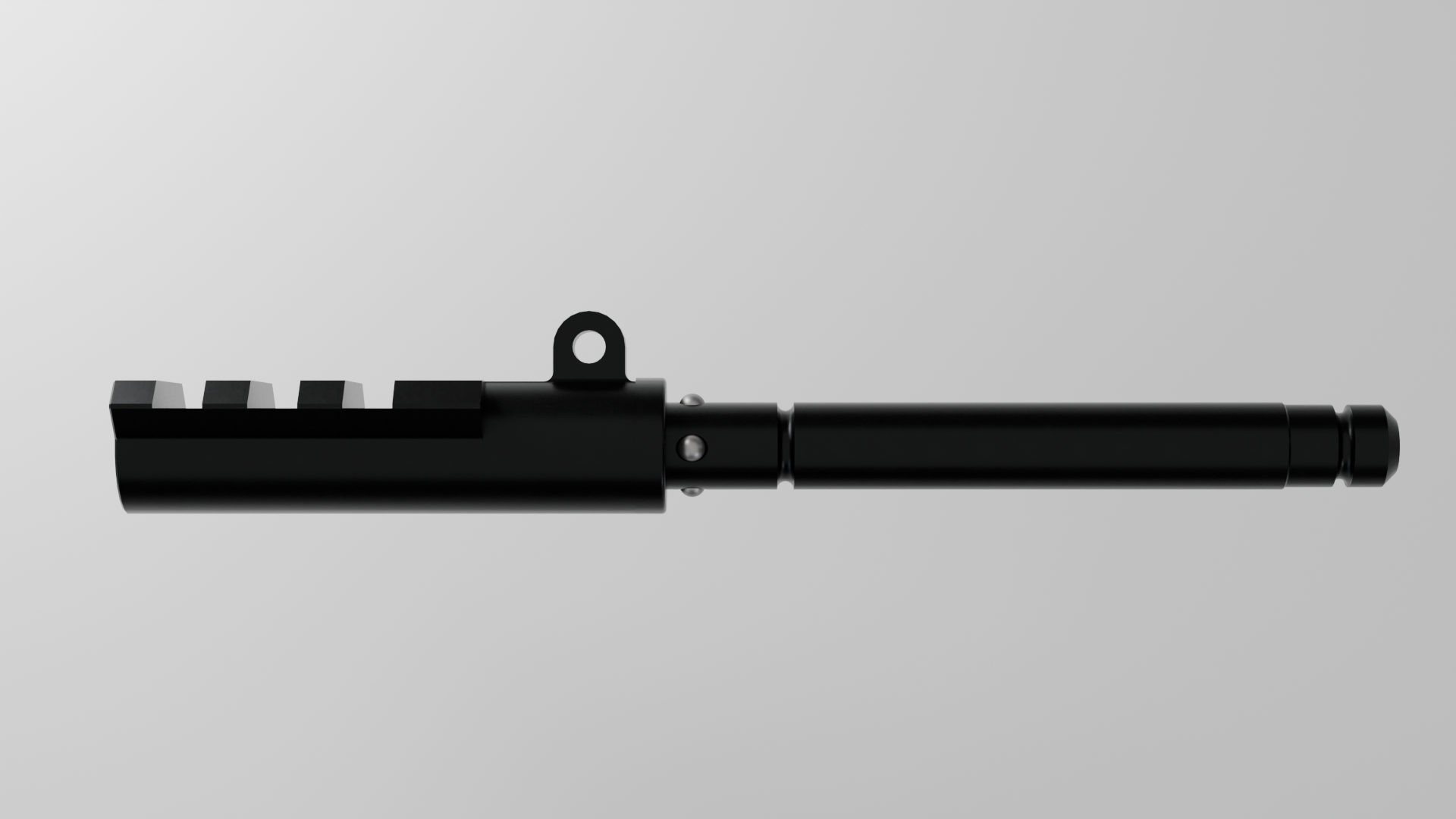

Sauer 404 / 505 Picatinny Rail Adapter

The Sauer 404 / 505 Picatinny Rail Adapter provides a practical Picatinny mounting interface at the front of the rifle for compatible bipods, shooting supports and other Picatinny-mounted accessories.

The adapter is designed specifically for the Sauer 404 and Sauer 505 and installs directly into the rifle's existing front sling mount. No drilling or other permanent modification of the rifle is required.

Machined from 7075 aluminium with an anodized finish, the adapter combines a compact design with a weight of approximately 60 g and an overall length of 123 mm.

Installation is straightforward: the adapter is inserted into the front sling mount and secured firmly in position using the integrated set screw.

An integrated sling stud retains the rifle's sling attachment functionality after the adapter has been installed.

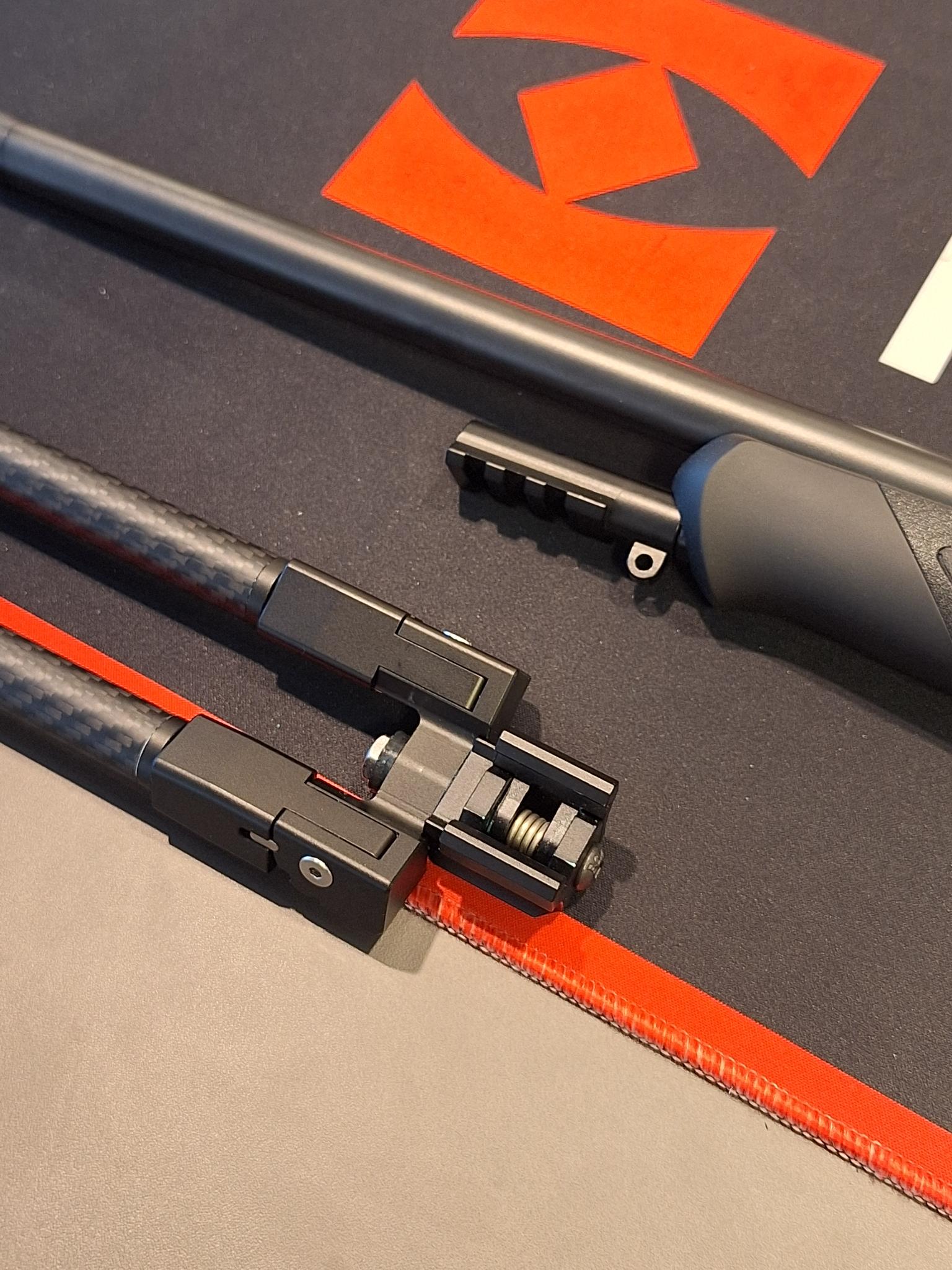

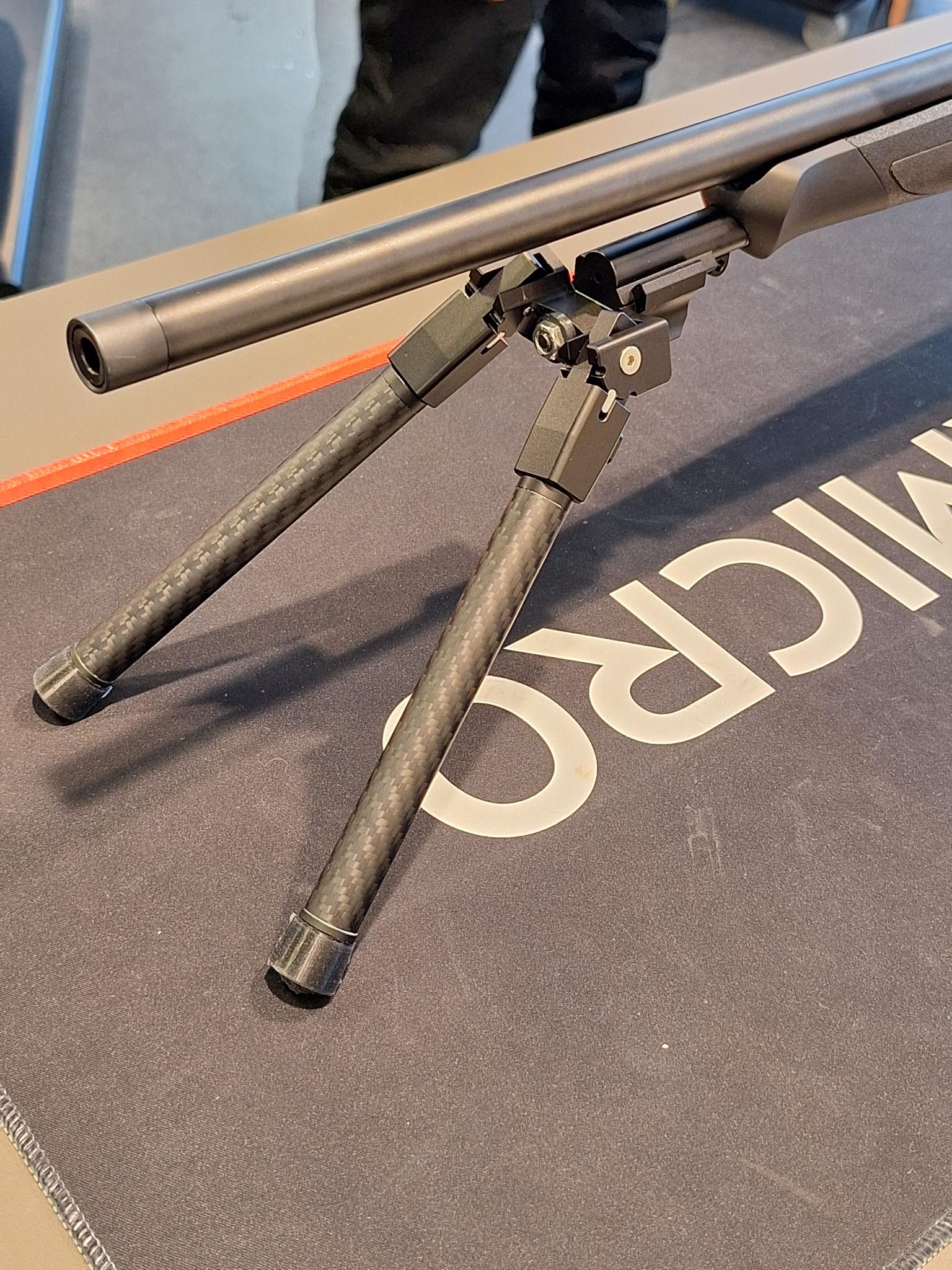

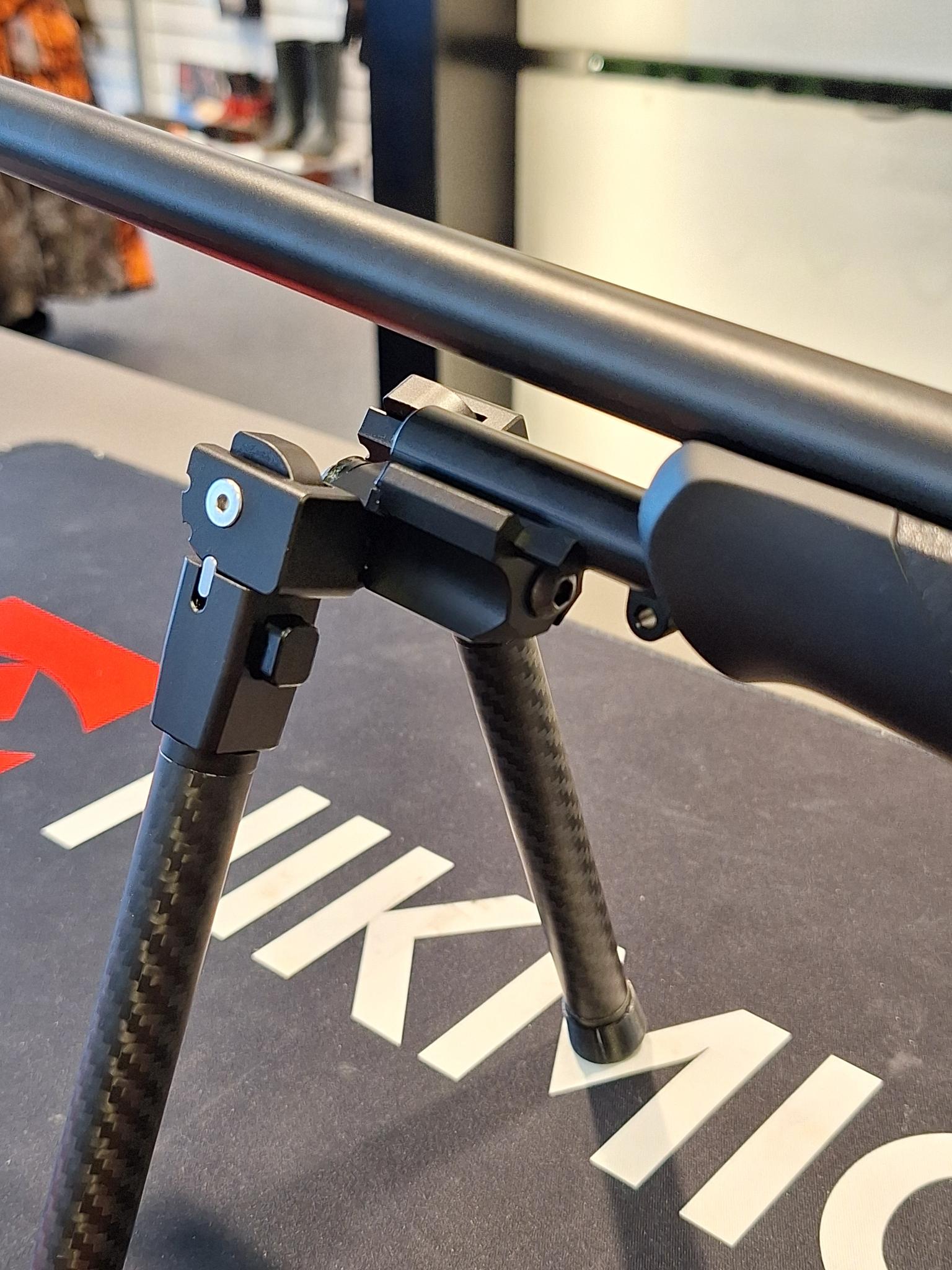

The Picatinny interface can be used with compatible shooting supports such as bipods and shooting sticks, including Picatinny-mounted NorneHunt shooting supports.

Key features:

• Designed for Sauer 404 and Sauer 505 rifles
• Machined from 7075 aluminium
• Anodized finish
• Picatinny accessory interface
• Installs in the existing front sling mount
• No permanent modification required
• Secured with an integrated set screw
• Integrated sling stud retains sling functionality
• Weight: approx. 60 g
• Overall length: 123 mm

Compatible with Sauer 404 and Sauer 505 rifles.

The adapter is machined from 7075 aluminium and finished with an anodized surface treatment.

It installs directly into the existing front sling mount of the rifle.

No drilling or permanent modification of the rifle is required.

The adapter is secured in place using the integrated set screw.

An integrated sling stud allows the rifle sling to remain attached after installation.

Weight: Approx. 60 g.

Overall length: 123 mm.

SKU: ST-SA505PIC
